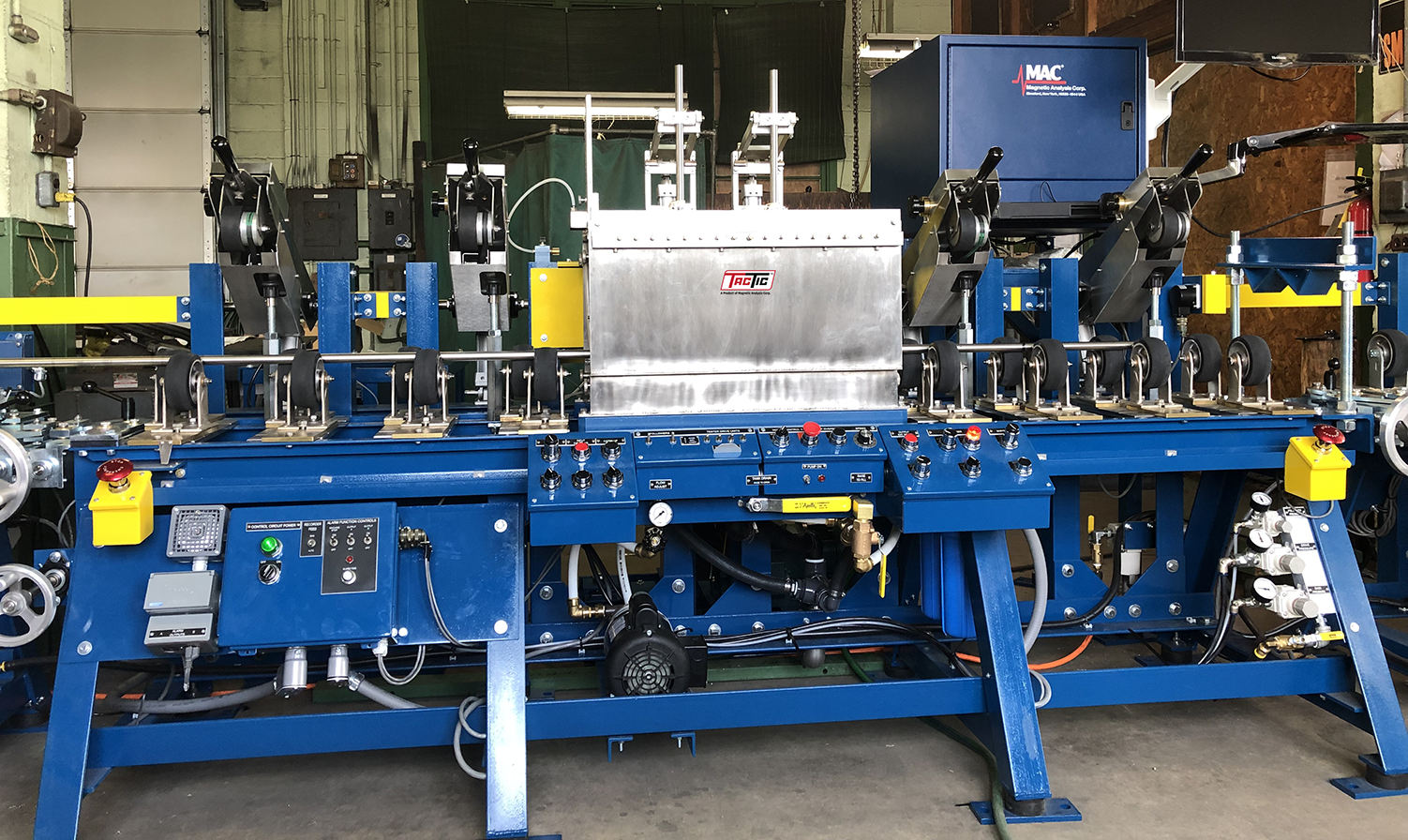

MAC has cost effective TacTic® “Spin-the-Tube” immersion tank ultrasonic systems which can be used to test tube up to 8” and bar up to 6” diameter, where high through-put speed is not a requirement. The systems locate internal and external defects and inconsistencies in the wall thickness of tubular products.
TacTic’s ultrasonic testers and idlers are specifically designed for the material you need to inspect, including round or flat material of varying sizes as well as tube or pipe welds. The tester and idler sections feed, rotate, and inspect the material.
TacTic’s UT equipment models with immersion tanks work equally well for ultrasonic tube, pipe, and bar inspection in automated production use or in manual, laboratory-type applications. We also offer a wide variety of systems for flat material and tankless testing.

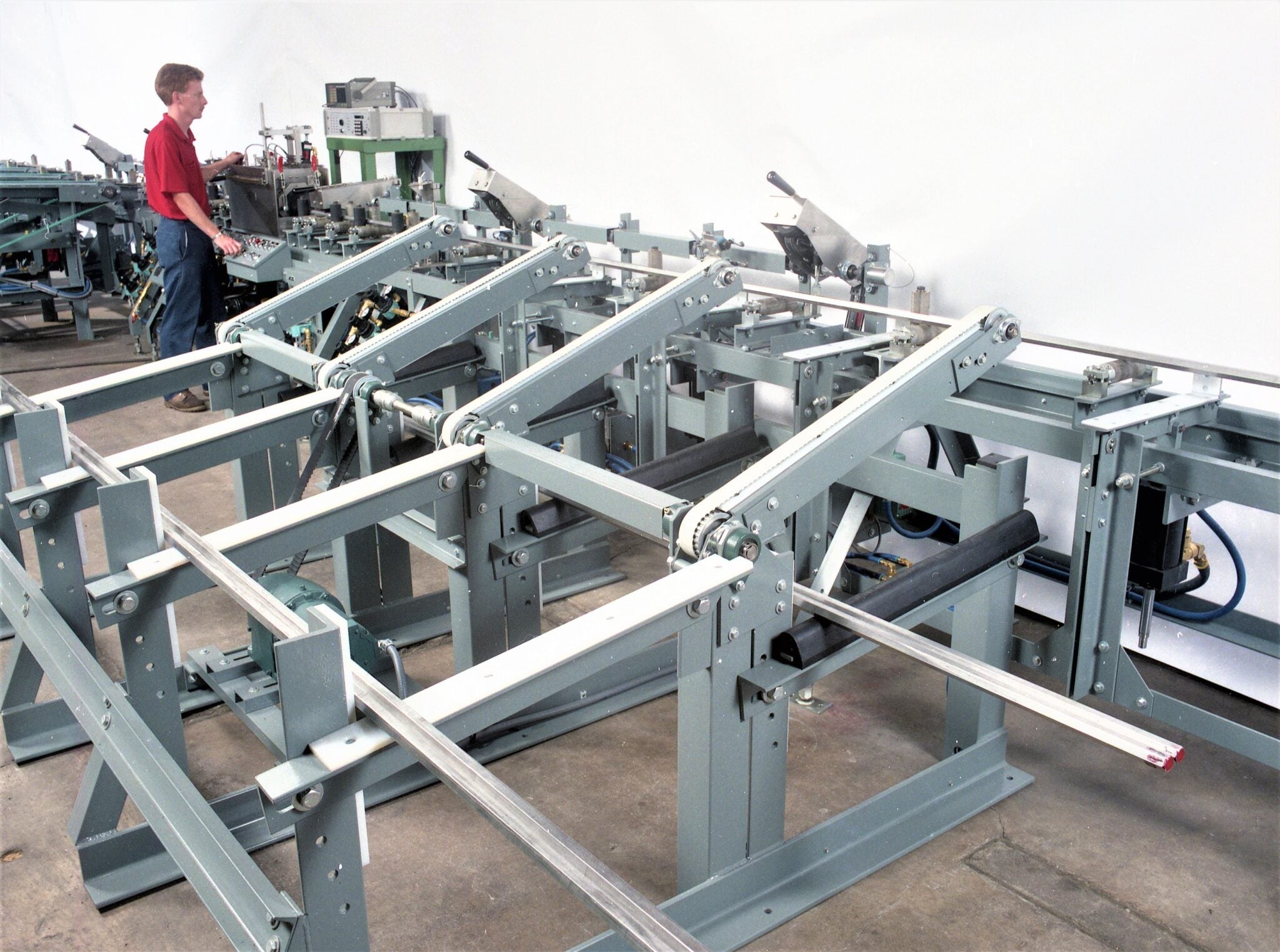

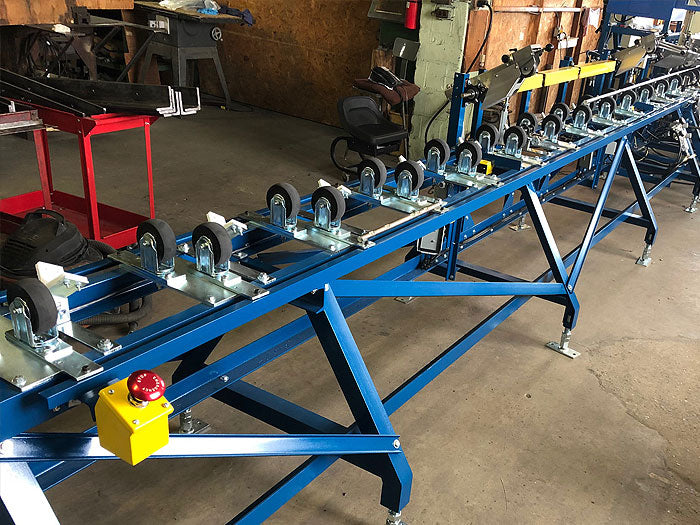

These rugged conveyor sections are placed at each end of a tester to provide good support for incoming and outgoing pieces. We carry these products in lengths up to 30′ (9.1 m). They may be fitted with loaders, unloaders, defect sorters, markers and “Hold-downs” as described under Accessories & Components / Material Handling Accessories.
