ECHOMAC® FD6 MULTICHANNEL UT


Ultrasonic Instrument for Flaw Detection, Thickness, and Dimensional Measurement in Tube & Bar

Technology

High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
Read more

Need to quickly find the solution that’s right for you?

Contact Us

For Flaw Detection, Thickness & Dimensional Measurement in Tube & Bar.

  • Versatile Ultrasonic tester with superior performance and versatile, intuitive operation.
  • For full inspection of tubes, pipes and bars, plate and weld.
  • Operate on or off line.
  • Upgrade and/or replace older ultrasonic testers.

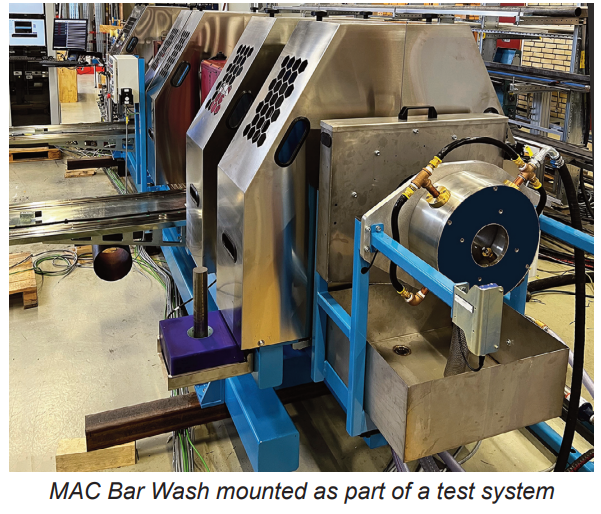

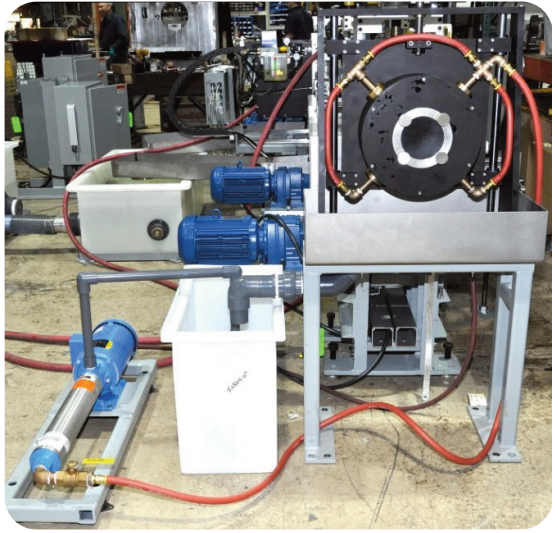

  • Use with rotary, spin-the-tube, squirter and bubbler installations.

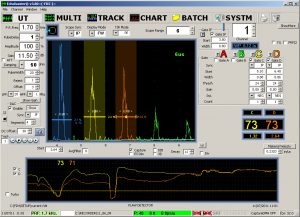

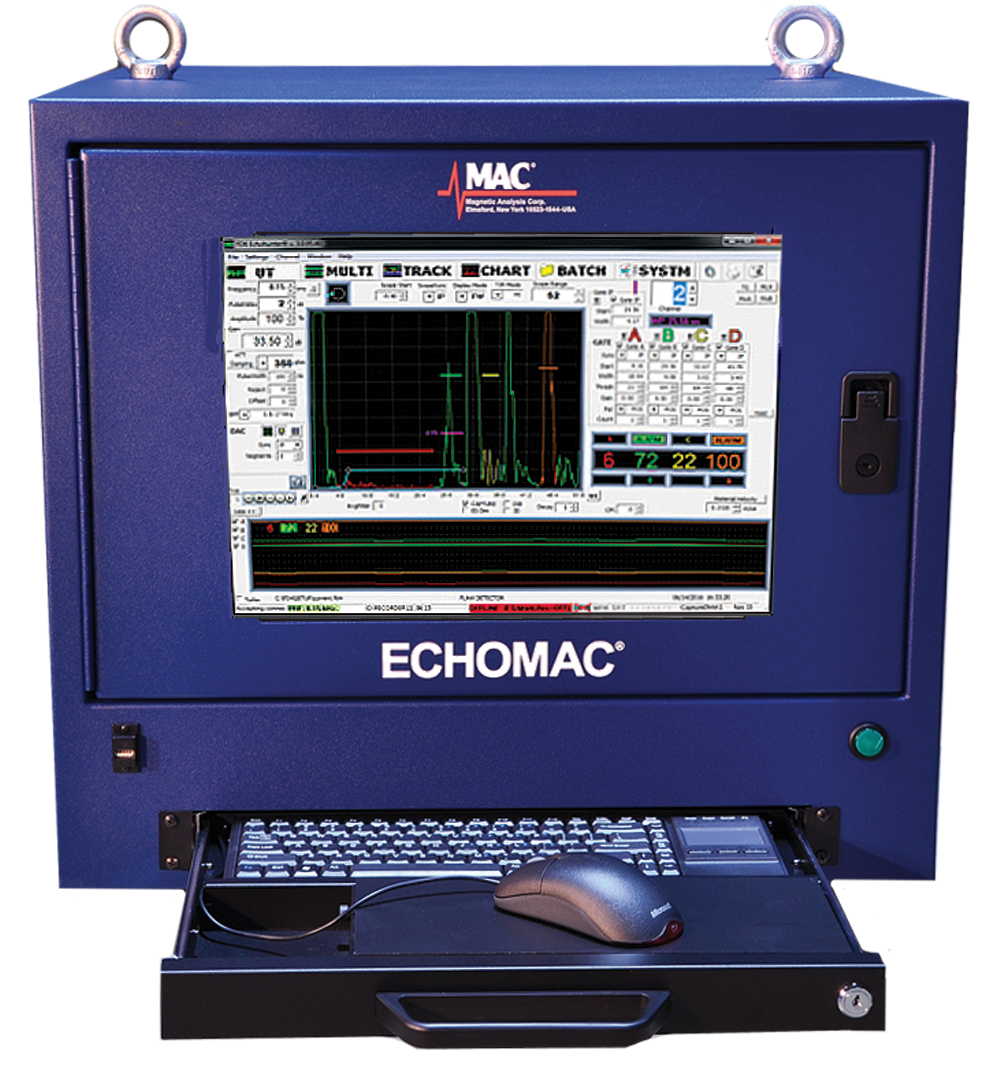

  • Vivid, real time, flicker free full color display of test signals, thresholds and settings.
  • Up to 32 independent channels in one instrument.
  • Model 6A is GE Qualified as of 9-6-16 for P3TF31 Class A & B, & P29TF82 Class A & B, typical requirements for nuclear and aerospace applications.

Building on the success and wide acceptance of earlier Echomac® models, the FD-6 and 6A achieve new levels of improved signal to noise ratio, finer adjustments, improved thickness resolution, repeatability, and reliability.

Features:

  • Flaw detection, thickness measurement, dimensional evaluation, eccentricity calculation, weld inspection and characterization.
  • Set up and control of all key test parameters on one screen with a click of the mouse or keyboard.
  • Thresholds can be moved by selecting and dragging on screen and a “Global” key allows parameters for several channels to be adjusted at once, or copied from one channel to another.
  • The chart screen shows strip charting and defect logging of all events, up to 32 channels or functional groups, in live or replay mode.
  • Full tracking of end suppression, defect marking capability, and customizable data retention are included

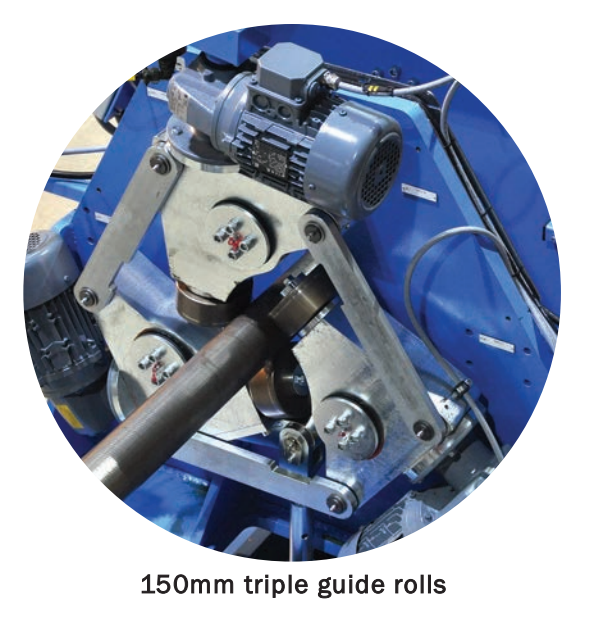

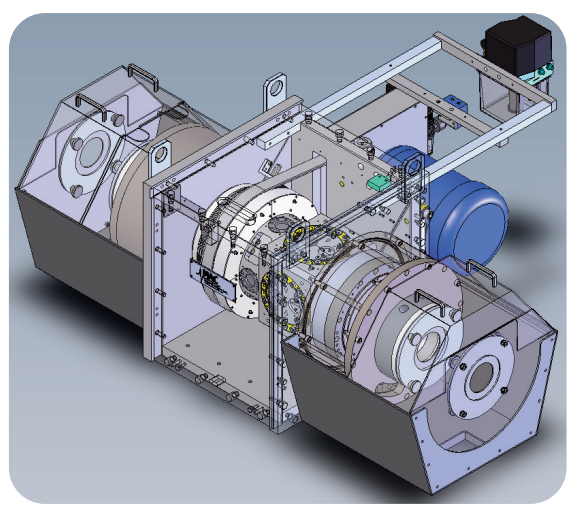

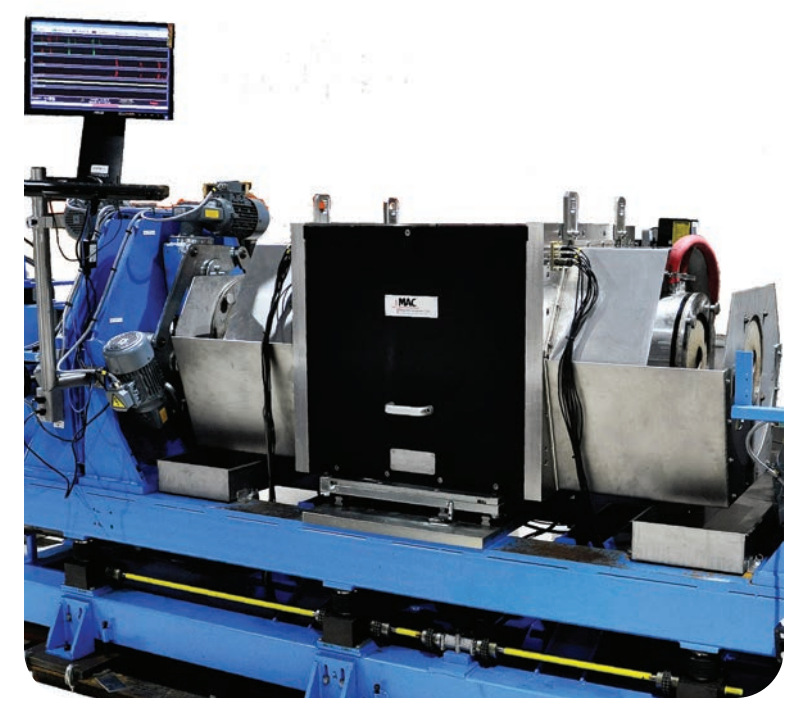

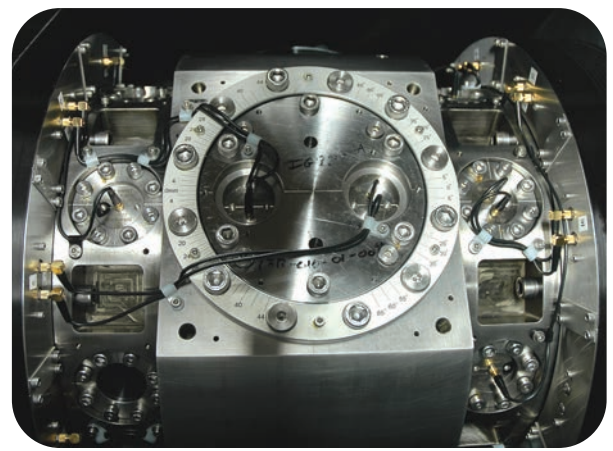

  • Use with MAC’s Echomac® Rotary Ultrasonic Transducer assembly as well as with other existing immersion, bubbler or squirter type and “spin the tube” installations
  • Can replace any commercial ultrasonic instrument in almost any application.
  • Includes extremely flexible tracking, sorting and recording functionality that enables very close end testing and normalized recording which compensates for the many inspection planes necessary in complex multi-transducer configurations.

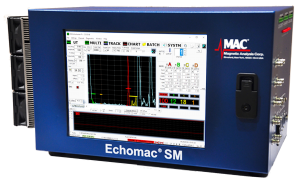

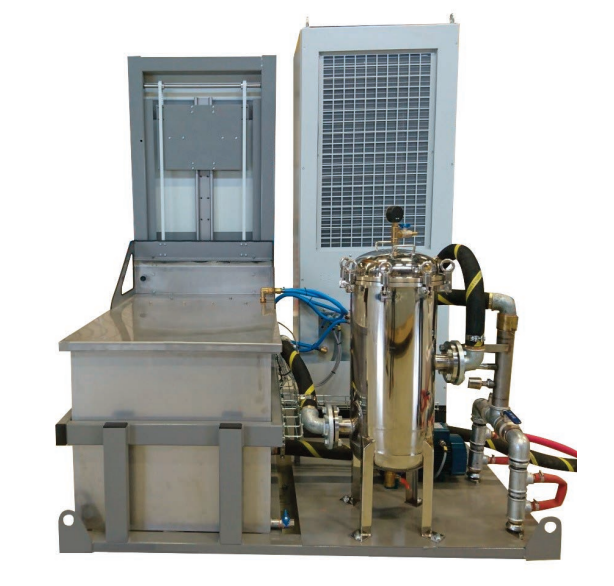

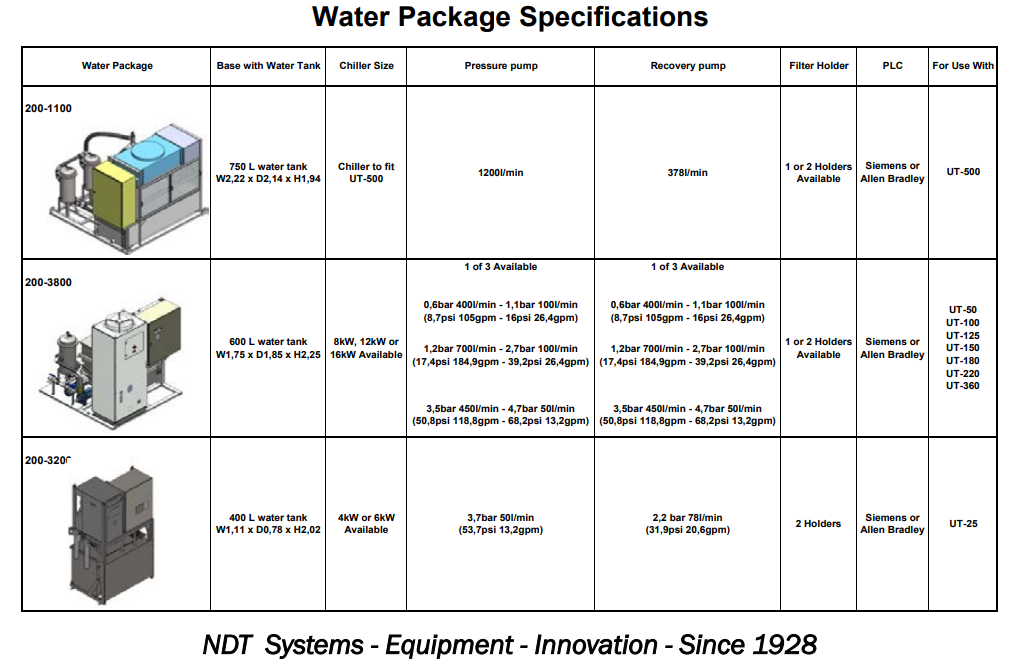

MAC also offers an Echomac® Small unit. Available with up to eight channels of electronics to detect and evaluate thickness, flaws and eccentricity, this UT tester is housed in a convenient, smaller cabinet. It features a closed loop heat exchanger to ensure proper operating temperature, as well as protection from the outside environment. Echomac® Small can be equipped with an optional monitor and keyboard if required. This instrument can be used in conjunction with bubbler or immersion tank systems, or with a test bench or in laboratory applications. The Echomac® Small is available in the FD4, FD6 or FD6A versions
