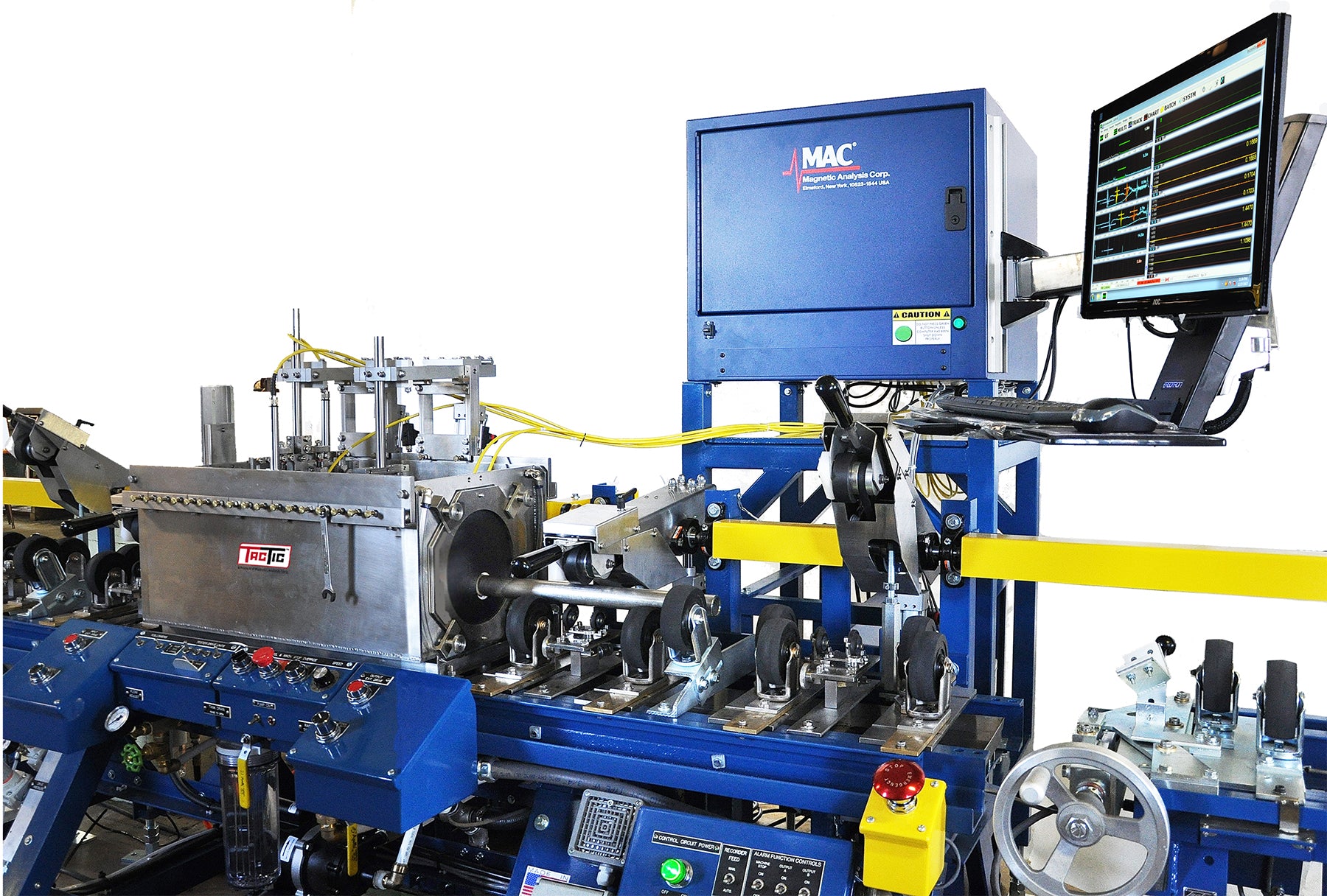

TacTic developed a series of testers for linearly translated, flat-sided or round material using a new “glanded” version of our famous “flow-coupler” transducer shoes. These shoes are mounted in pairs in an air-actuated, photo sensor-controlled “follower” to ensure good coupling and beam orientation despite minor changes in test material position as it passes through the test station. Tester models are available with one, two, three or more pairs of transducers, each pair in its individual follower.

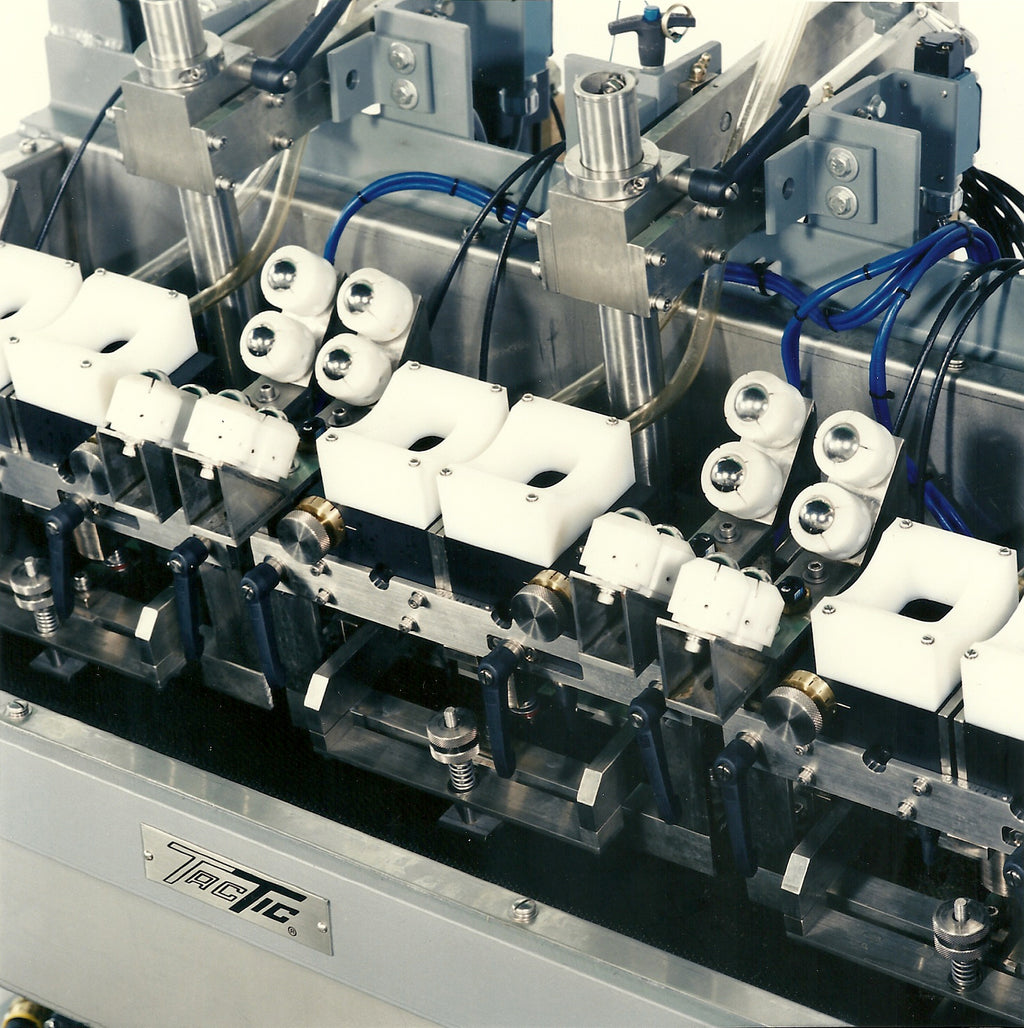

These testers use pneumatically raised transducer coupling shoes in one or more dual probe carriers that contact rotating material from underneath. Doubly pivoted carriers provide “following” action to maintain good coupling and transducer alignment in spite of material centerline displacements. Precise probe spacing enables “interlaced” scanning to increase inspection speed. TacTic Model 900 Recirculating Ball Transfers are used for contact with the material. Contoured, non-contacting faceplates minimize loss and splashing of the recirculated coupling water. Air “blow-offs” keep couplant water off external conveyors.
You may also like
For use with Magnetic Analysis Test Systems
Prevent False Test Signals from Contaminated Bar & Tube Surfaces & Reduce Rotary Cleaning Downtime.
Model 204 and 205 Series Air-actuated “Extended” Drive Units are overhead drive wheels.
Material is placed on forward-sloping, plastic-covered storage arms of the loader and is restrained from rolling off by means of adjustable stops at the front of the loader modules.
These sorters are available for manual or automatic operation. After material is inspected, it is unloaded and ready for sorting.
Model 150 Series Storage Rails are available for use adjacent to output Idler sections.
Models 187 and 188 Unloaders unload each piece after it has passed through the Tester to the output Idler Sections.
These rugged conveyor sections are placed at each end of a tester to provide good support for incoming and outgoing pieces.
Model 76E “Standard Duty” Testers feature tanks with an inside length from 6″ to 30″ (150-760 mm).
“Heavy Duty” Testers are powered either by a 7.5 HP motor (76F) or by a 10 HP motor (76G).
Ultrasonic Inspection Systems for Flat-Sided Material Squares, Rectangles, Hexagonals, Strip
These testers are designed to handle material sizes ranging from 2 1/2 to 7 inches (63-178 mm).
