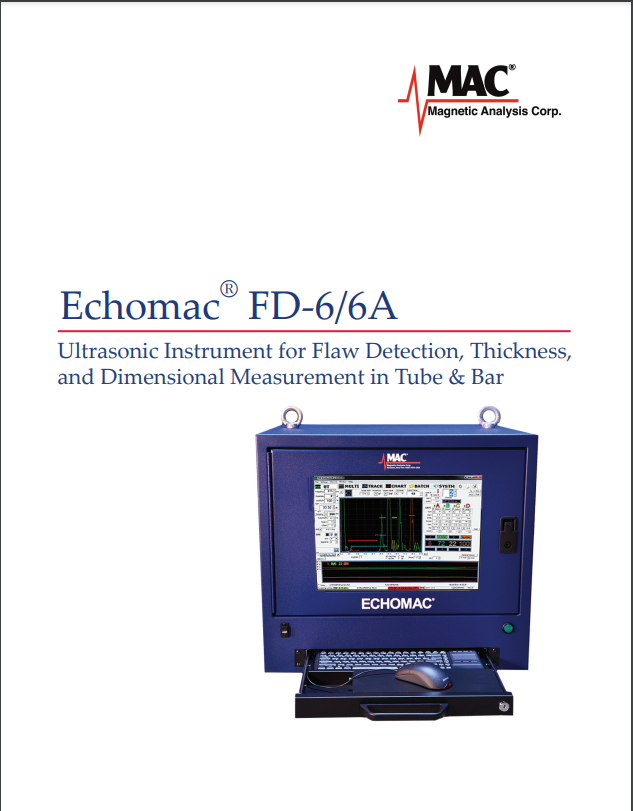

ECHOMAC® FD6A


Ultrasonic Instrument for Flaw Detection, Thickness, and Dimensional Measurement in Tube & Bar

Technology

High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
Read more

Need to quickly find the solution that’s right for you?

Contact Us

The Echomac® FD-6A, Magnetic Analysis Corp’s UT instrument, achieves  improved signal to noise ratio, finer adjustments, improved thickness resolution, repeatability, and reliability.  Featuring MAC’s user friendly Echohunter® interface software and versatile intuitive operation, control of all key test parameters is on a single screen, and thresholds can be moved by selecting and dragging on screen. A “Global” key allows parameters for several test channels to be adjusted at once, or copied from one channel to another.  The 6A model has also received GE qualification for P3TF31, Class A & B, & P29TF82 Class A & B, a typical requirement for nuclear and aerospace applications. New installations or older ones that need to be upgraded can benefit from use of the Echomac® FD-6A instrumentation.

You may also like

WATER PACKAGEWATER PACKAGE
WATER PACKAGE

For use with Magnetic Analysis Test Systems

MAC BAR WASHMAC BAR WASH
MAC BAR WASH

Prevent False Test Signals from Contaminated Bar & Tube Surfaces & Reduce Rotary Cleaning Downtime.

ECHOMAC® FD6 MULTICHANNEL UTECHOMAC® FD6 MULTICHANNEL UT
ECHOMAC® FD6 MULTICHANNEL UT

Ultrasonic Instrument for Flaw Detection, Thickness, and Dimensional Measurement in Tube & Bar

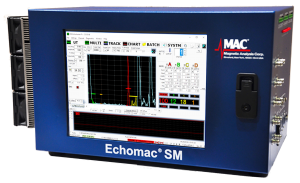

Echomac® SM
Echomac® SM

Simple, Effective Ultrasonic Instrument With up to 6 Channels

ECHOMAC® 25mm UT ROTARYECHOMAC® 25mm UT ROTARY
ECHOMAC® 25mm UT ROTARY

For Inspecting High Precision Small Diameter Tube & Bar

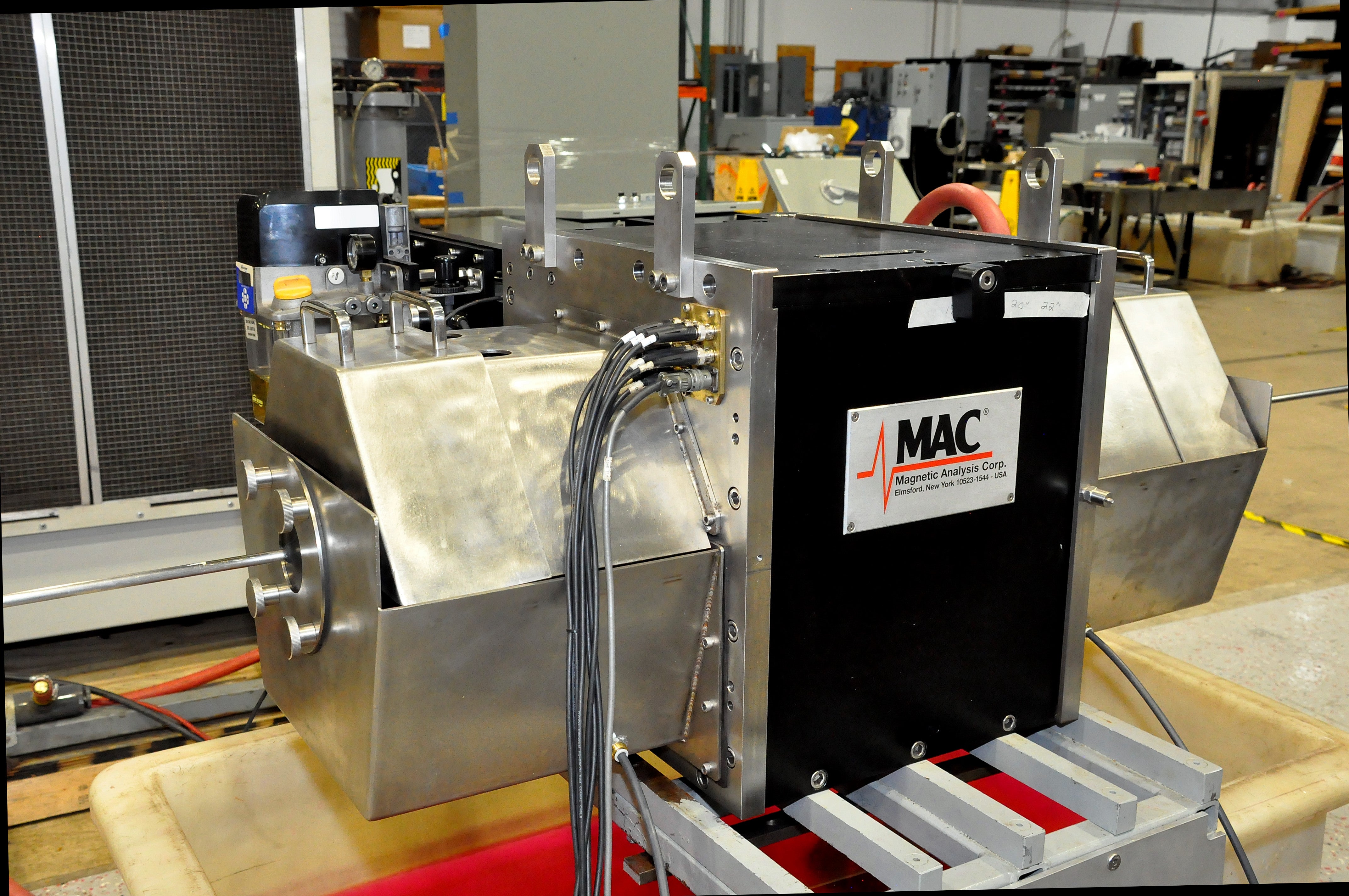

50mm UT Rotary50mm UT Rotary
