ECHOMAC® PA WHEEL TESTER


Robust, Cost Effective UT Phased Array System for In-Service Rail Wheel Tread Inspection

Technology

High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
Read more

Need to quickly find the solution that’s right for you?

Contact Us

Rail Wheel Testing Using Phased Array System

MAC introduces two versions of Rail Wheel Testers using ECHOMAC® PA platform based on customer requirements.

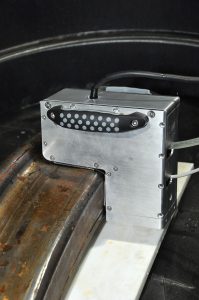

One is a semi-automated solution using local immersion technique. Used for tread inspection of new and/or reprofiled wheels. This solution meets or exceeds EN13262, ISO5948 or AAR M-107/M-208 standards for tread inspection.

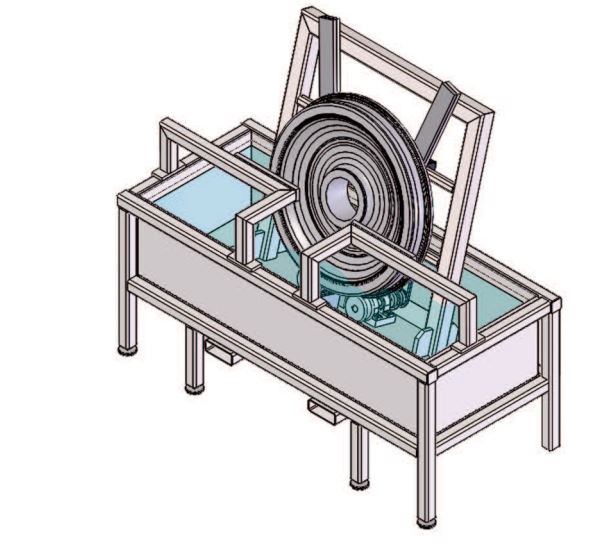

The second solution is a fully automated immersion tank. Performs tread and face inspection of rail wheels using two phased array probes simultaneously. This solution meets or exceeds EN13262, ISO5948 or AAR M-107/M-208 standards for tread and face inspection, while monitoring the backwall on the face side per EN 13262.



Both systems feature:

  • 19” Touch Screen
  • Step by Step screens for the operator
  • Bar Code Entry and auto select setup
  • Alarm for loss of interface, backwall drop,defect detection. (Visual, Audio and On screen)

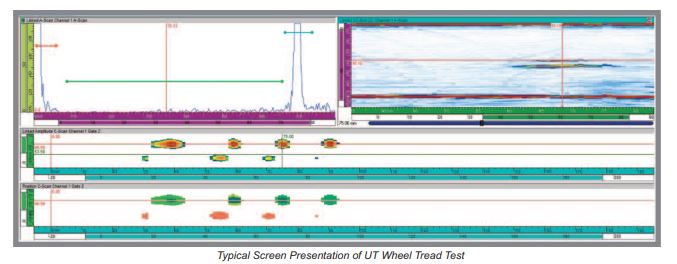

  • C-Scan imaging of test results (Top View)
  • Position Encoded C-scans to locate defects on the wheel circumference
  • Offline Data Analysis software for Level 3
  • Digital inspection data can be saved perwheel serial number for future reference.
