CABINETS


Environmental and Standard Enclosures for Test Instruments

Technology

MAC’s® Eddy Current Testing (ECT) systems incorporate computer-based test instruments and test coils that use two ECT coil technologies: encircling and sector coils, and spinning or rotary probe coils.
Read more
High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
Read more

Download Brochure

Need to quickly find the solution that’s right for you?

Contact Us

Cabinet Feature

Cabinet 002

24.88”W x 22”H x 26”D (63.19 x 55.88 x 66.04cm)

  • 19” door mounted touch screen.
  • Includes keyboard and mouse.
  • Thermostatically controlled 1800 BTU air controller. Adds 8” (20.32cm) to depth.
  • Comes with MultiMac®, Echomac® or Echomac PA front panel imprint.

Cabinet 003

24.88”W x 22”H x 26”D (63.19 x 55.88 x 66.04cm)

  • Same dimensions & AC as CAB 002.
  • No built in monitor
  • Includes logo but no front panel instrument name imprint.

Cabinet 005

24.81”W x 48.06”H x 24.06” D (63.01 x 122.07 x 61.11cm)

  • Environmental cabinet built for up to 2 electronic units.
  • Leg Mounted.
  • Rack mounted display upon request..
  • Thermostatically controlled 2200 BTU A/C. Adds 12” (30.48cm) to width.

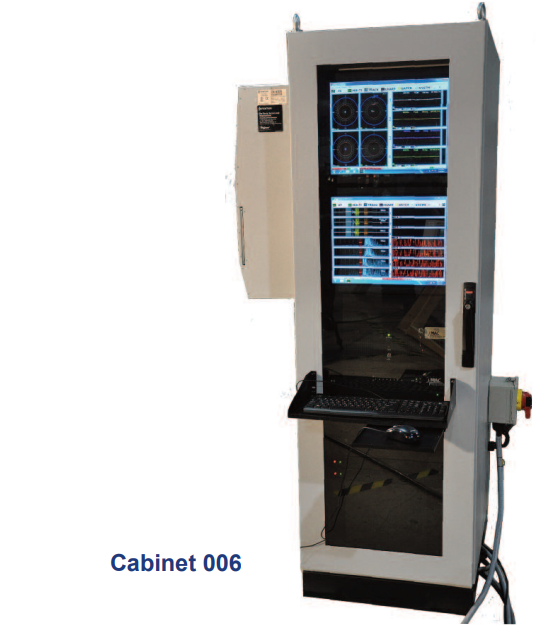

Cabinet 006

23.62” W x 74.80” H x 31.50” D (59.55 x 189.99 x 80.01cm) (AC adds 10.16”W (25.85cm)

  • Environmental cabinet built for up to 3 electronic units.
  • Floor Mounted.
  • Rack mounted display upon request.
  • Easy access convenient mounting racks
  • Thermostatically controlled 6000 BTU A/C.
  • All cabling enters the cabinet through a removable bottom panel ensuring easy access.

Cabinet 819

19”W x 8.75”H x 24”D (48.26 x 22.23 x 60.96cm)

  • Bench-mounted.
  • Non-air conditioned.
  • Designed for use with a "stand alone" display. monitor(not included)
  • Used with MultiMac® and Echomac® FD-4 electronics.

Add a Blower Panel & CAB 819 becomes CAB 151

Cabinet 151

19” W x 8.75” H x 24” D

  • Built in blower panel.
  • Bench mounted.
  • Designed for use with a
    "stand alone" display
    monitor (not included).
  • Used with MultiMac® electronics.

MultiMac® SM

Echomac® SM

Echomac® VM

20”W x 12”H x 12”D (50.8 x 30.48 x 30.48cm) Cooling fan adds 3”W (7.62cm) Connectors add 1”W (2.54cm)

  • 15” door mount touch screen monitor.
  • Built in computer.
  • Includes cooling fan, keyboard, and mouse

MultiMac® SM NM

20”W x 12”H x 12”D (50.8 x 30.48 x 30.48cm) Cooling fan adds 3”W (7.62cm) Connectors add 1”W (2.54cm)

  • No built in monitor
  • Built in computer.
  • Includes cooling fan, keyboard, and mouse

Cabinet 024

19”W x 7”H x 24”D (48.26 x 17.78 x 60.96cm)

  • Use with Production
    Comparator PC6 electronics.

Cabinet 990

15.5”W x 9”H x 21”D (39.37 x 22.86 x 53.34cm)

  • Use with Varimac® VI electronics.
