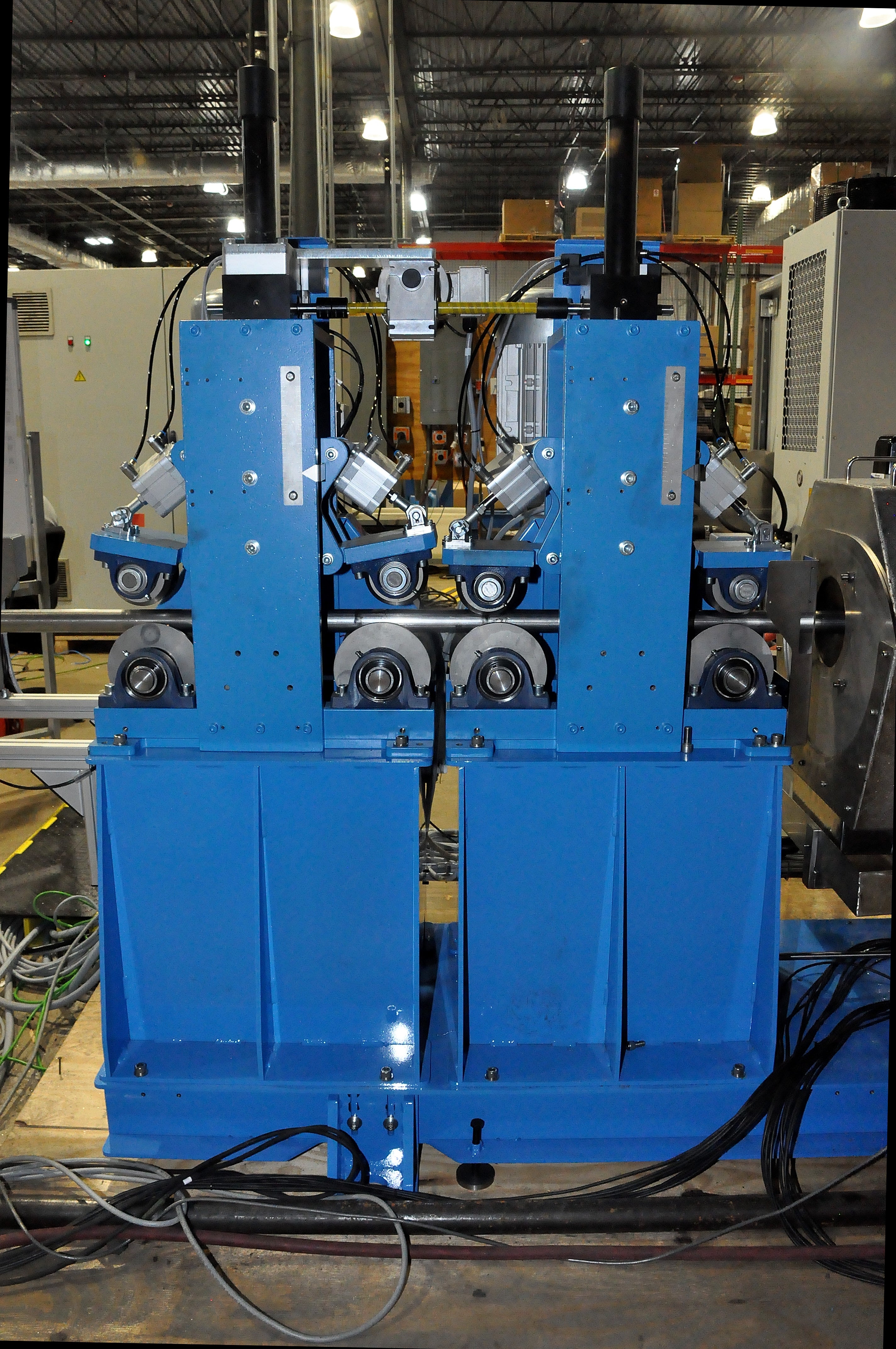

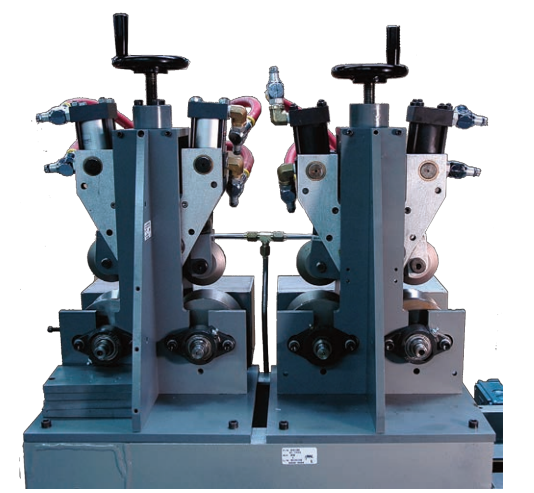

Test Bench – Standard “V” Roll

Standard “V” rolls and pinch stands to accurately support and position test material.
“V” rolls feature three points of contact, 2 fixed bottom rolls and a flat top roll to ensure firm support and eliminate vibrations.
Automated or manual controls are offered for making easy adjustments in testing material size and diameter.

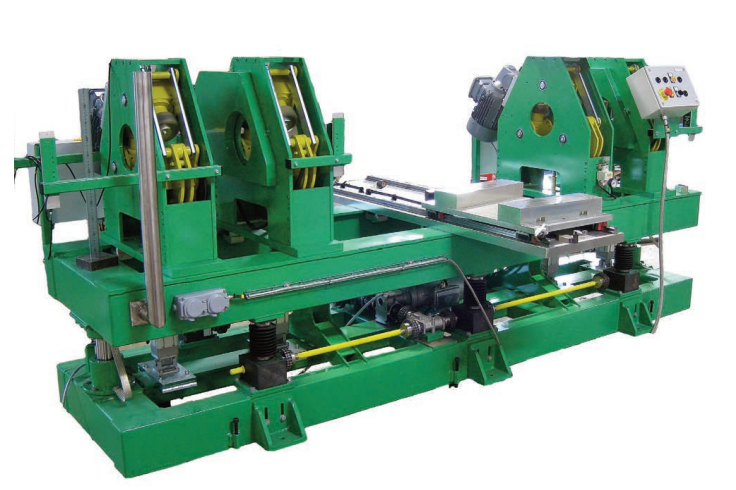

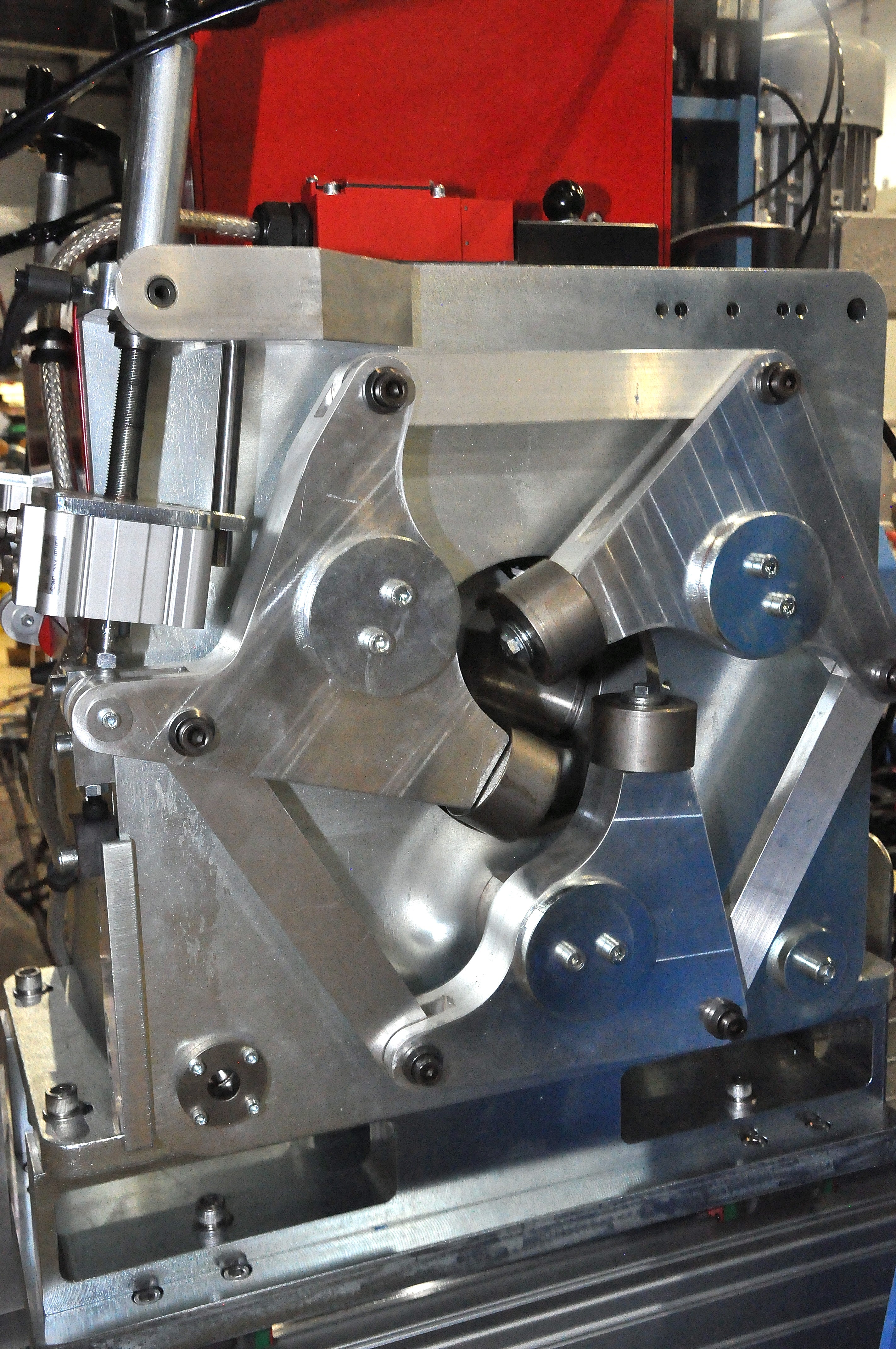

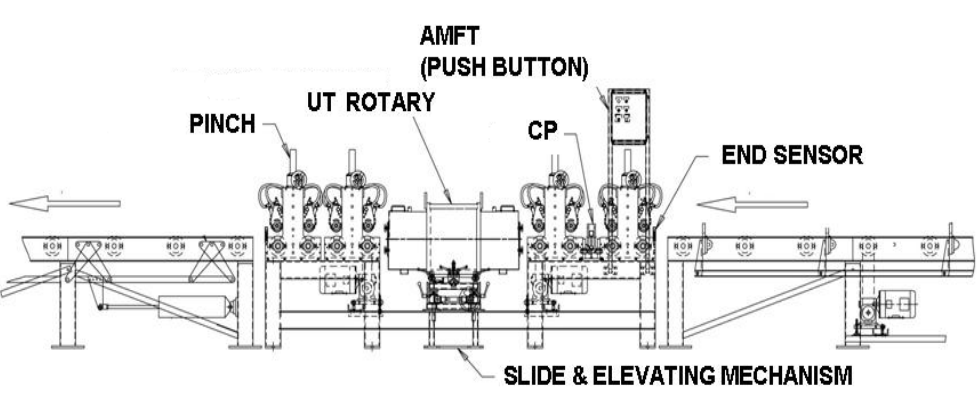

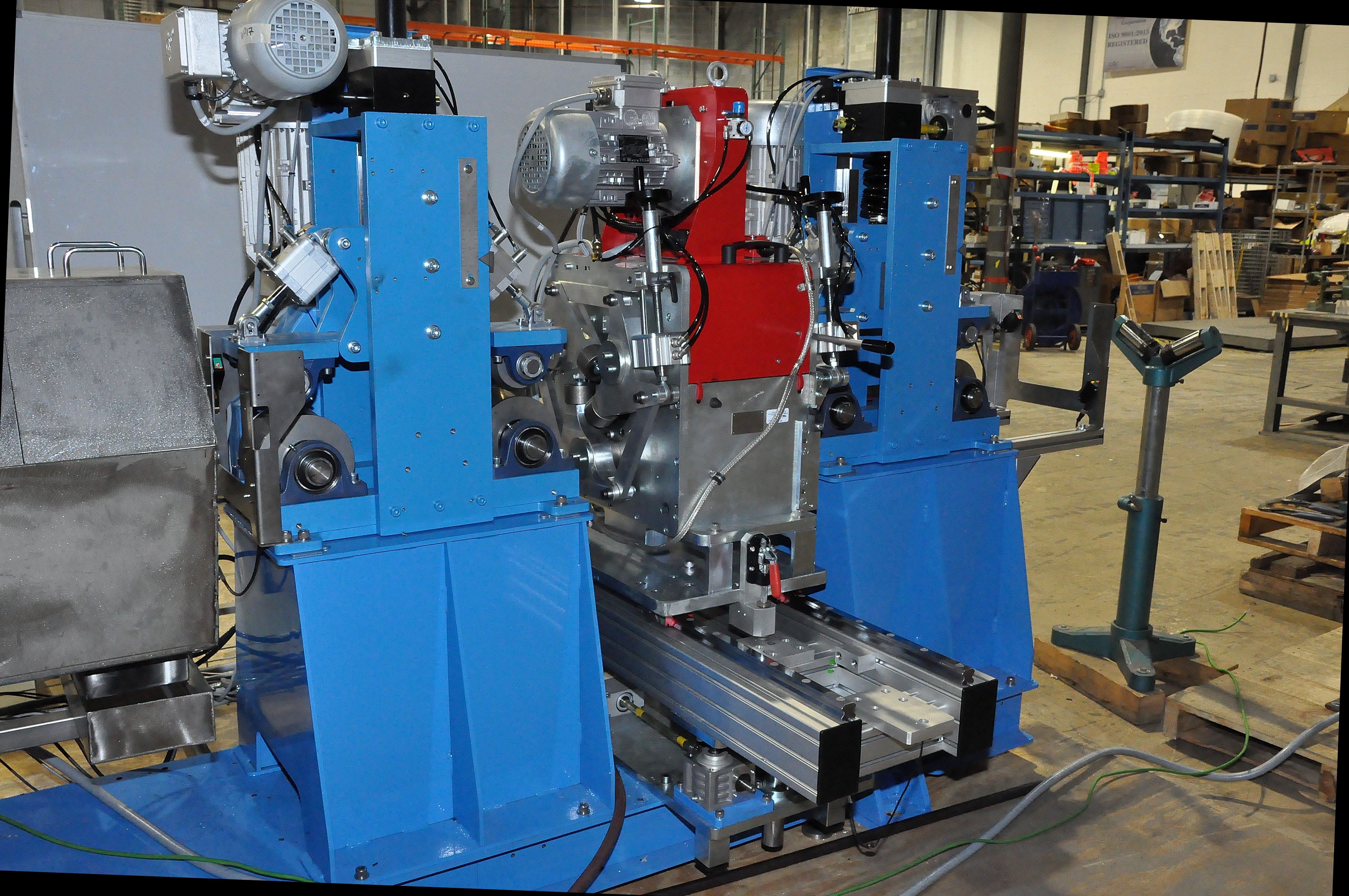

Test Bench – Triple Guide Roll Constant Center

Entire bench can be automatically adjusted to align test coils and test heads with the level of the incoming test material.

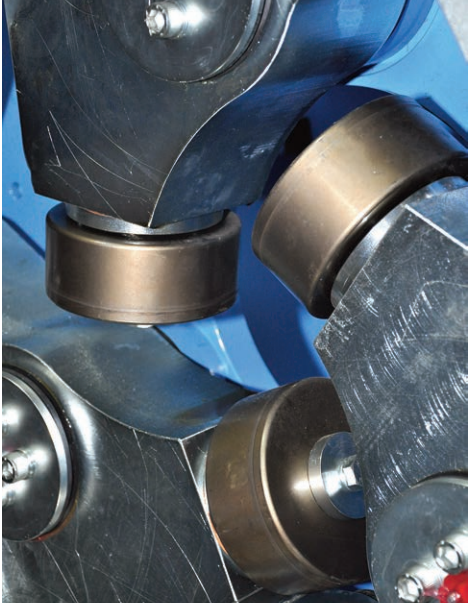

Triple guide roll pinches guarantee a controlled entrance and exit from the test stations.
Automatically adjusts the bench height and opening of the triple pinches for changes in test material dimension, using the PLC or Conductor Controls.
Recommended for testing upset pipe and tubes with badly formed ends, or in difficult straightening applications.
