WATER PACKAGE


For use with Magnetic Analysis Test Systems

Technology

High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
Read more

Download Brochure

Need to quickly find the solution that’s right for you?

Contact Us

Application

The Water Package is designed to provide clean and tempered water to MAC ultrasonic inspection systems. The system is modular by design, and easy to adapt to each customer’s needs. In addition, its closed loop system makes it user-friendly, and maintenance is straightforward. Depending on your specific requirements, a custom system can be designed with different capacity pumps, filters and water cooling chillers.

Description

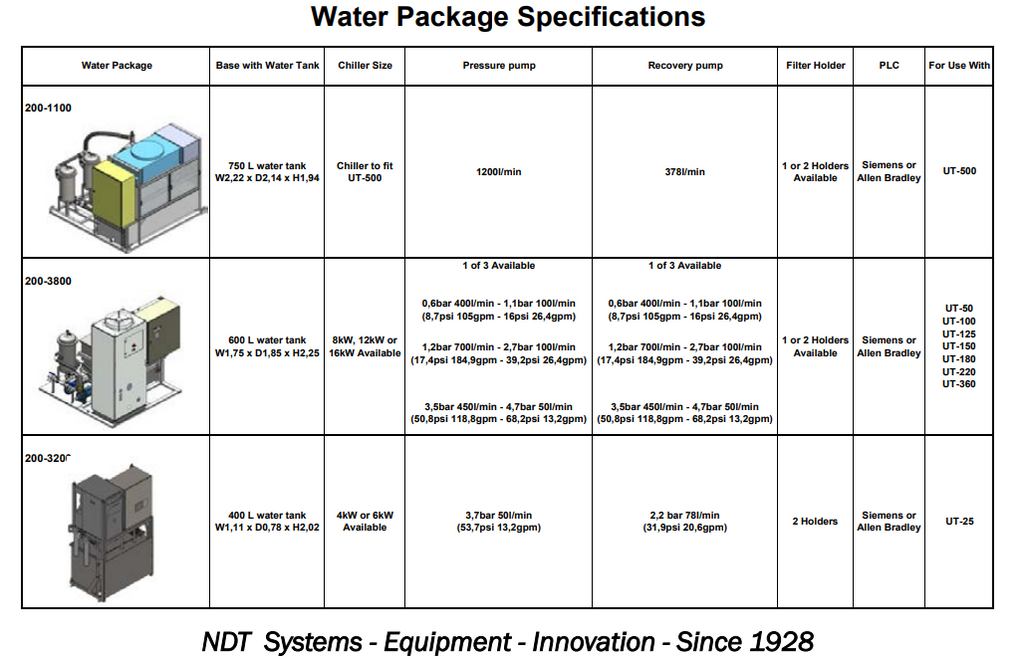

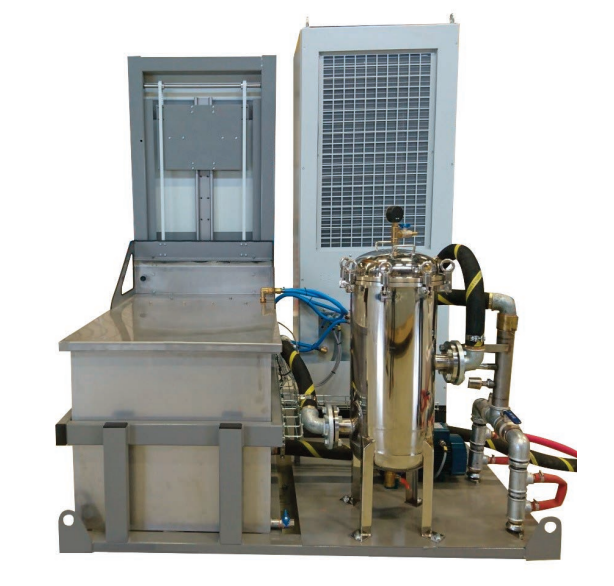

The Water Package includes a filtering unit, cooling system, water reservoir and delivery and return pumps. It also has one (1) feed pump that supplies clean water to the ultrasonic test equipment. All pumps are frequency controlled, which allows for greater control of the operation. The entire system is PLC controlled and housed in a cabinet.

The used water from the test station is led to a reservoir placed away from the water package frame itself. The remote reservoir is connected to a suction pump that pumps the water through the filter, which removes particles and contamination from the water. The water is then led to the cooling unit reservoir, where it is cooled from the chiller via a coil, which is placed inside the water reservoir. The temperature may be adjusted in the chiller’s controller cabinet.

Installation Requirements

Power: 25 Amperes, 400 VAC (460 VAC U.S.A) 60Hz

Environment Temperature Range: 10°C to 40° C
