ECHOMAC® PA COMPOSITE TESTER


The system is scalable, allowing the flexibility of adding channels as needed to handle a large range of part geometries.

Technology

High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws. This type of testing utilizes high-frequency sound waves that are transmitted throughout the material being tested in order to conduct a thorough inspection.
Read more

Need to quickly find the solution that’s right for you?

Contact Us

Composite Testing Using Phased Array System

MAC offers Composite Testers using our proprietary Echomac® PA platform.

Mechanics (Immersion systems, Bubblers) are designed per customer requirements and part geometries. The Echomac® PA platform can be scaled, and additional channels added to support application requirements.

Dynamic Depth Focusing (DDF), Full Matrix Capture, Synthetic aperture, Total Focus Method and other advance techniques can be leveraged on a scalable platform as needed for Laminate/ Composite inspection application.

Custom software can be developed per specifications and requirements for offline detection, sizing of defects and analysis.

You may also like

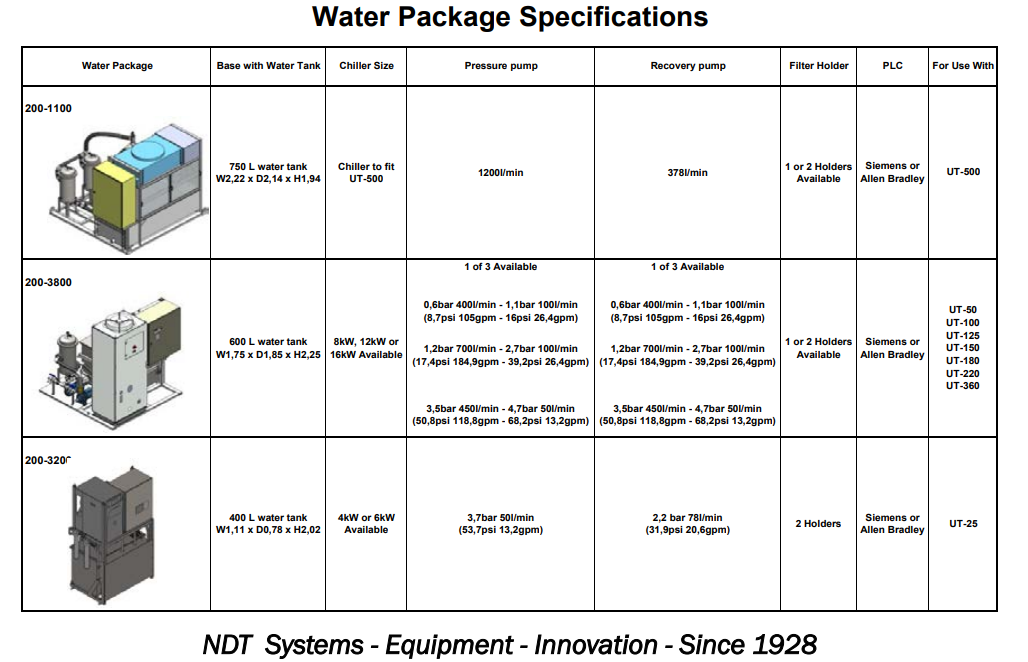

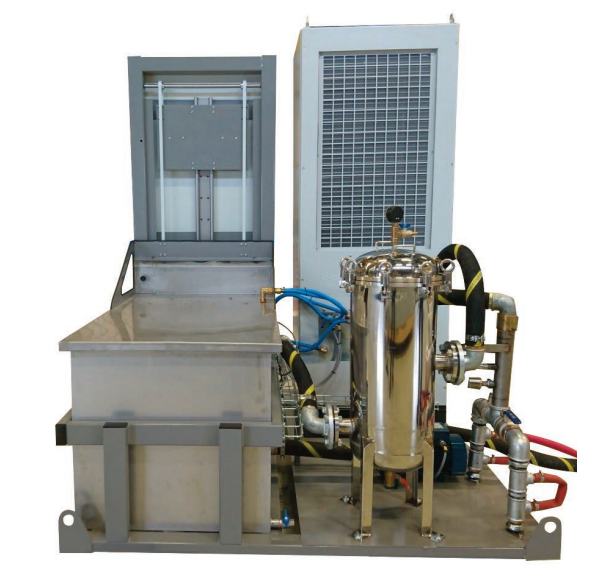

WATER PACKAGEWATER PACKAGE
WATER PACKAGE

For use with Magnetic Analysis Test Systems

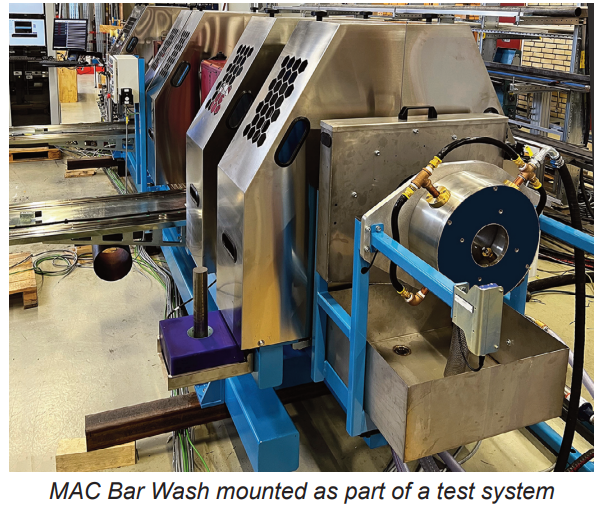

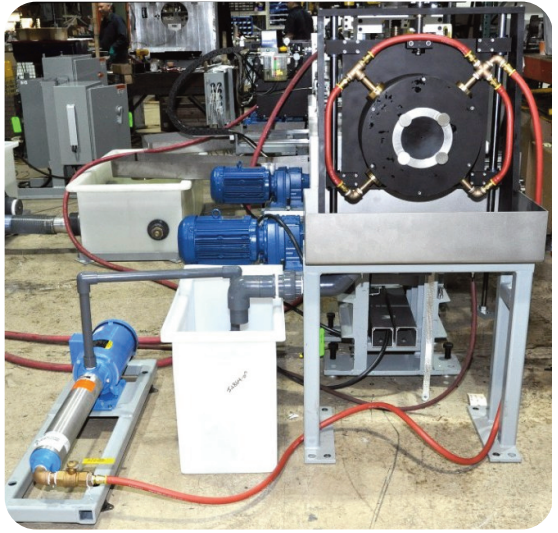

MAC BAR WASHMAC BAR WASH
